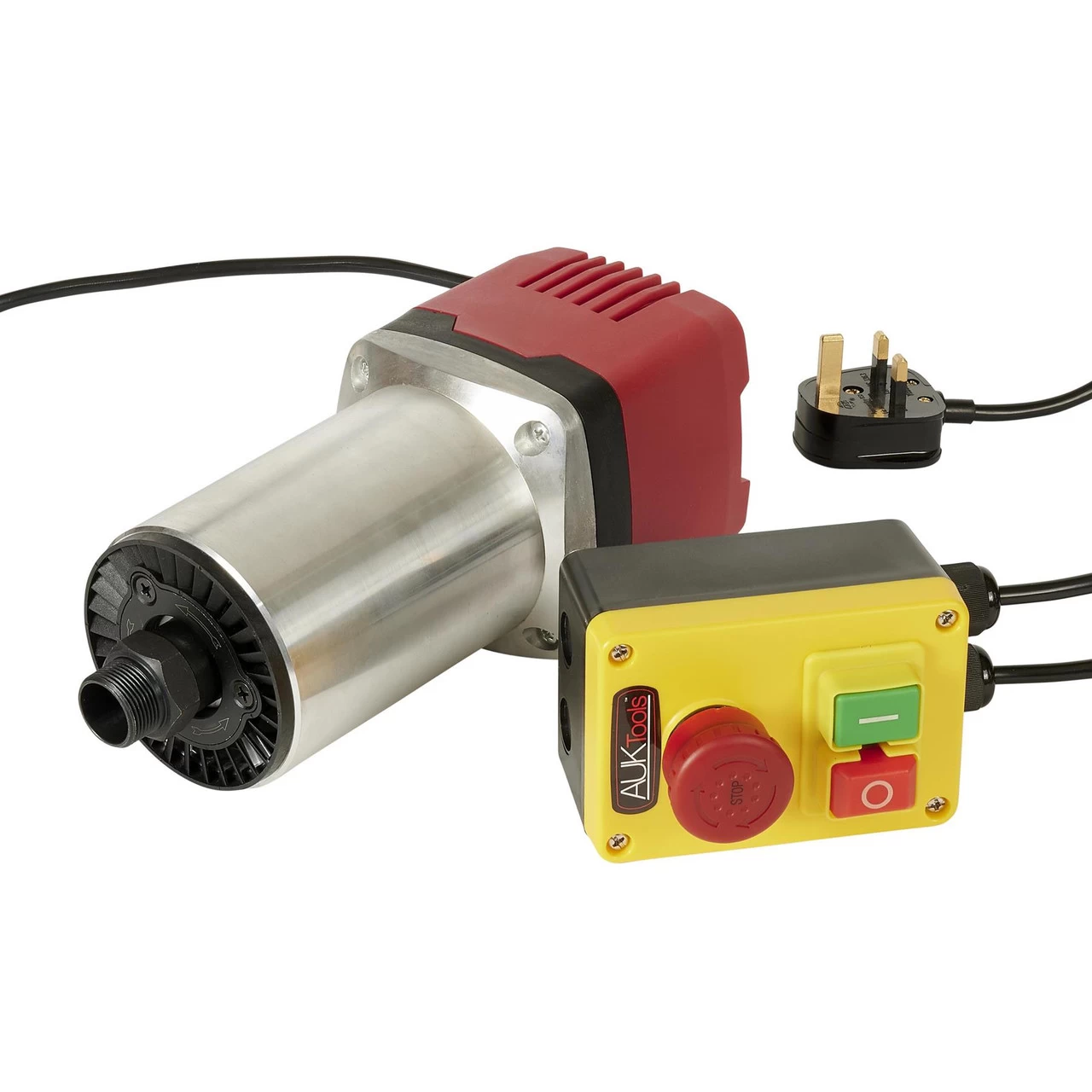

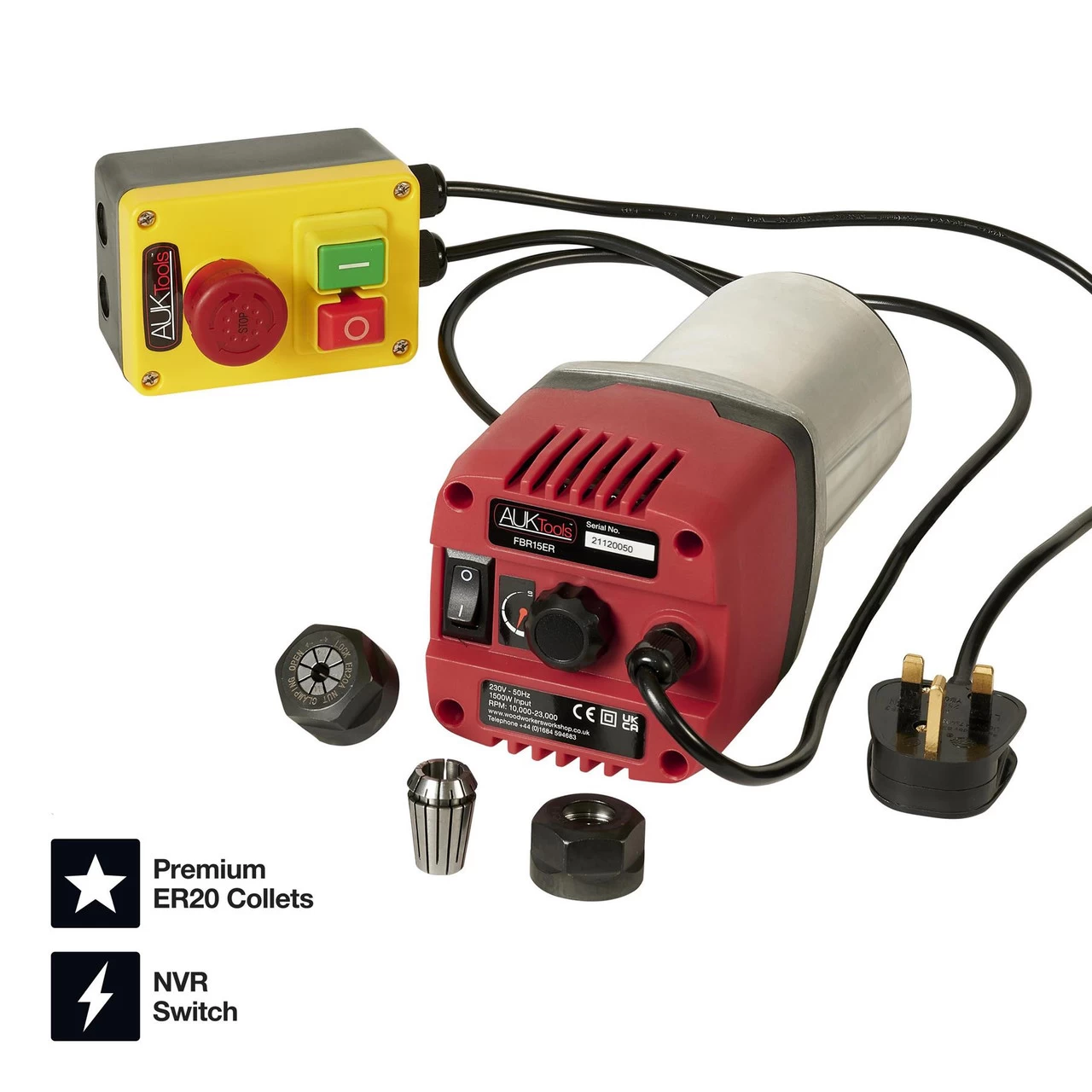

AUKTools 1500W Fixed Base Router

With ER20 Collets and NVR Switch as standard!

This industrial quality 1500W motor produced for Wood Workers Workshop to run on 230V power offers variable speed control between 10,000 to 23,000 RPM with premium ER20 collets for increased cutter grip with reduced runout, extending cutter and bearing life. The quiet running high torque motor tackles the most demanding of timbers with ease for safe and reliable router table work. With a unique pre-wired isolator and NVR (No Volt Release) switch.

This fixed base router is fully compatible with American style router lift systems including INCRA Mast-R-Lift II, JessEm Mast-R-Lift II and JessEm Rout-R-Lift II therefore allowing for precise and easy adjustment of cutter height without any cutter length loss below the table. The motor shaft and auto-release ER20 collet raise above the table for easy cutter change with the supplied spanners. The soft-start variable speed control is sealed for reliability in the hard-working environment of a router table or CNC machine and is engineered to maintain constant speed under load.

This router is designed specifically for use with router lifts and CNC machines that require a 88.9mm (3.5″) – diameter router. AUKTools fixed base router is not to be used freehand.

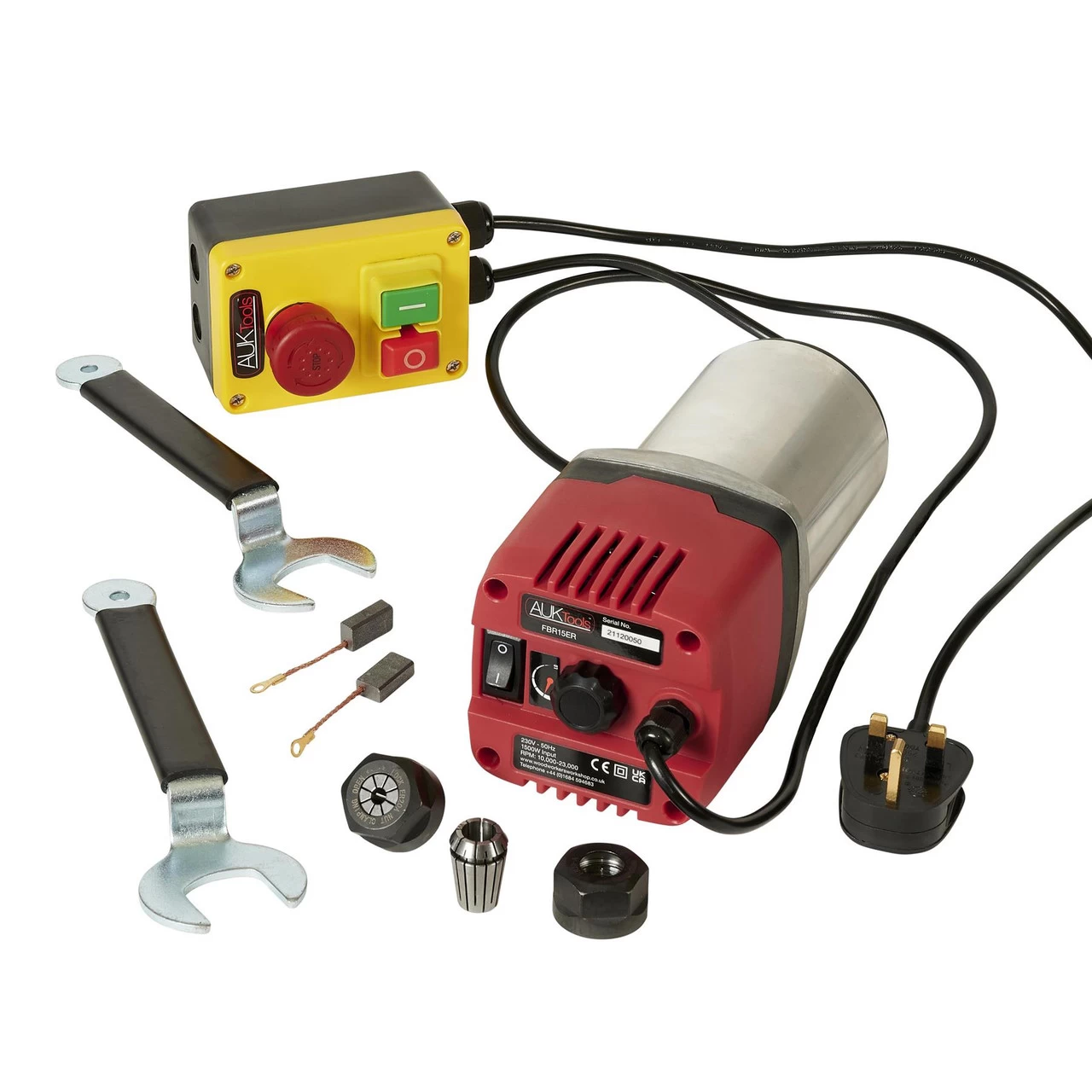

Includes

• AUKTools 1500W Fixed Base Router
• Pre-wired NVR (No Volt Release) Switch
• Offset Collet Wrenches
• ER20 1/4” Collet (1/4″ and 6mm shank cutters)
• ER20 1/2” Collet (1/2″ and 12mm shank cutters)
• Spare Set of Brushes
• Owner’s manual

Specification

• Voltage: 230V 50Hz
• Power Input: 1500W (2.00HP)
• Power Output: 1000W (1.34HP)
• No Load Speed: 10,000-23,000 RPM
• Soft Start Quiet Running Motor
• Current Overload Motor Protection
• Plug Format: Three-pin
• Weight: 4.1kg
