IGaging Digital 3-in-1 Marking And Mortise Gauge

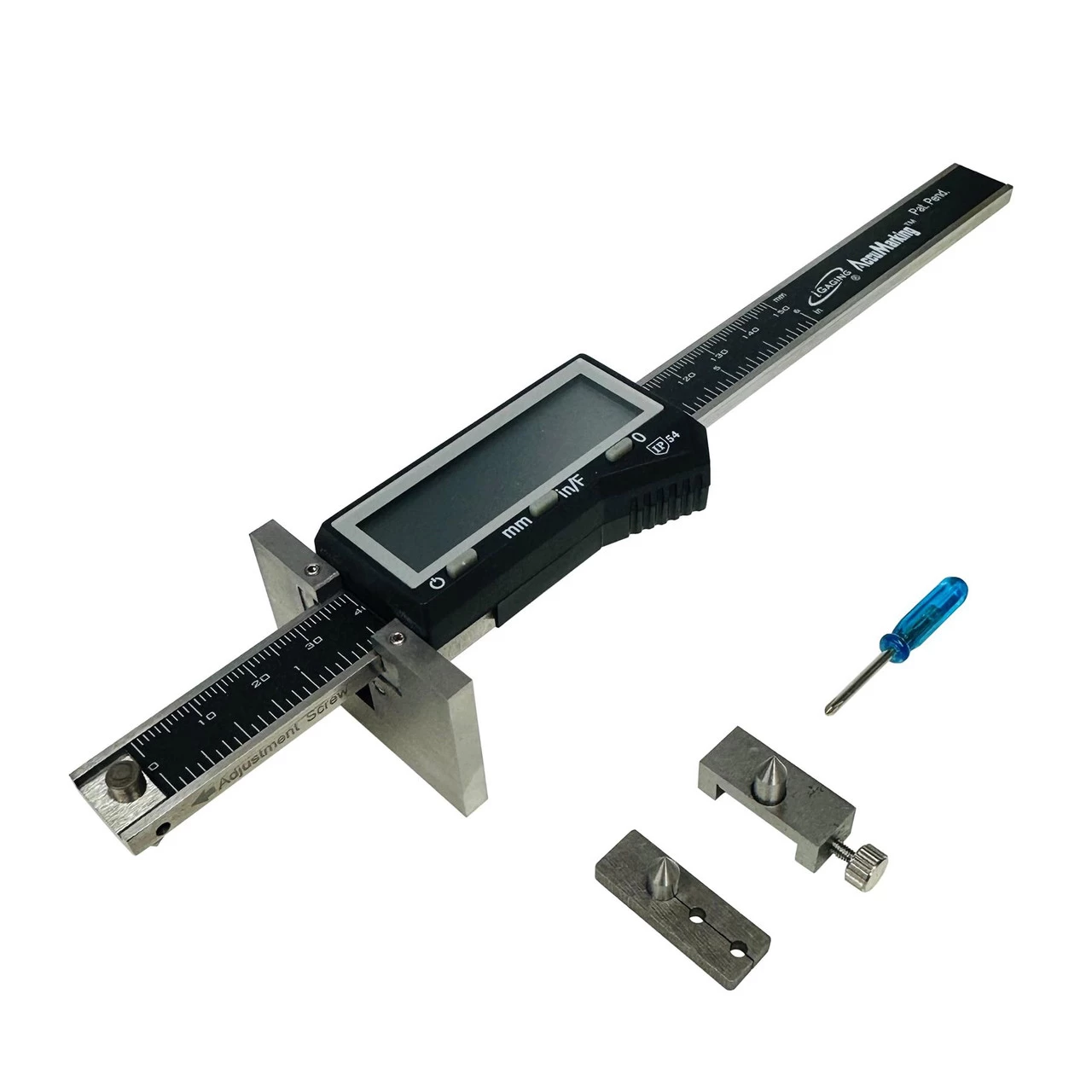

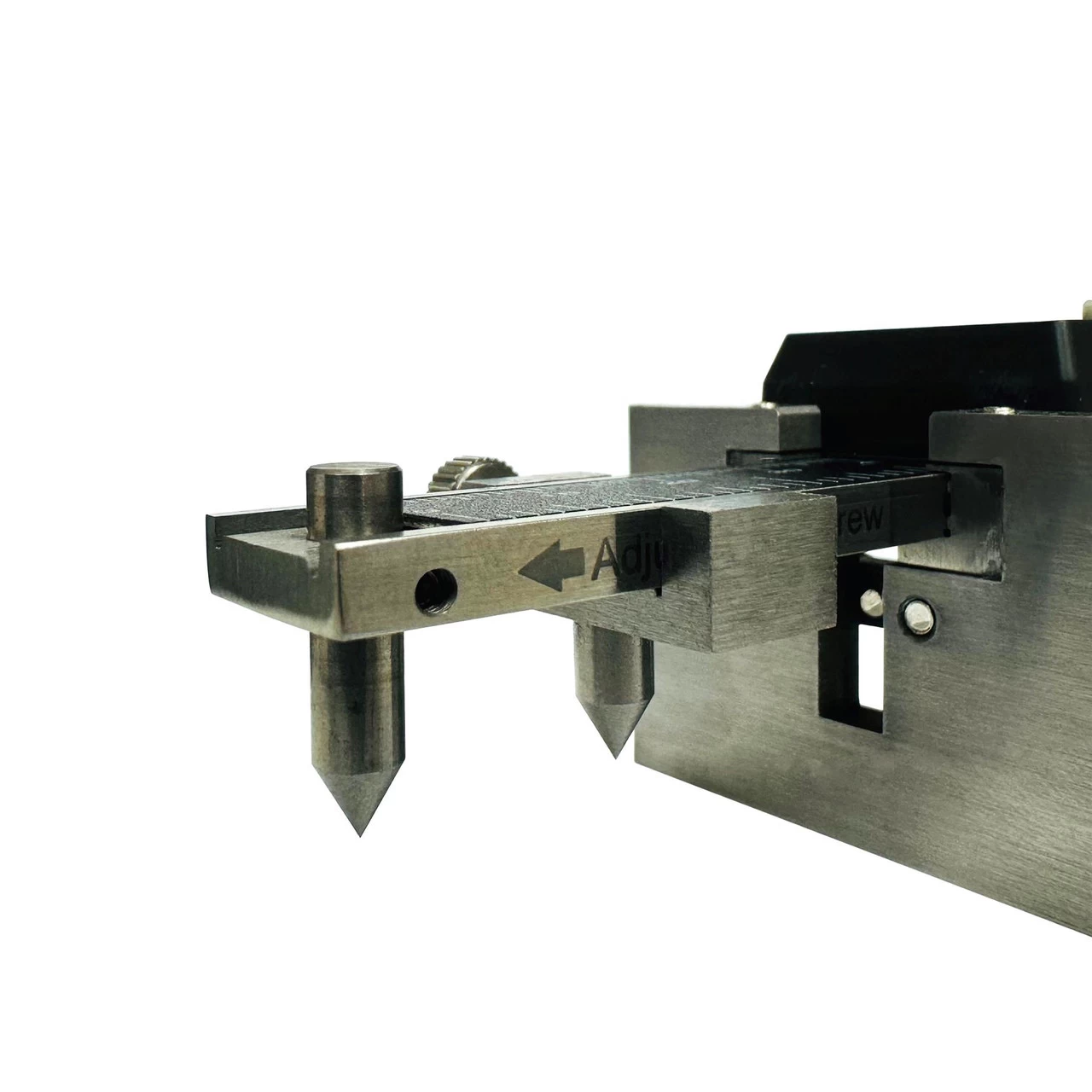

iGaging’s 3-in-1 Mortice Gauge is a multi-purpose tool featuring a heavy-duty pin for precision marking along, across and on end grain. The tool comes with a secondary pin attachment which converts the gauge to a mortice gauge. The final attachment replaces the 4.90mm thick machined flat gauge face which can be used as a divider/compass. This gauge is made to the same high-quality standards as all iGaging products, with an accuracy of up to 0.025mm over its 150mm range.

Perfect for getting your measurements done quickly for marking out with a large, easy-to-read LCD display that reads in metric (millimetres), decimalised and fractional imperial in 1/128^th graduations, to finish the tools is IP54-splash water, oil and dust resistant.

Features

• iP54 protective rating:Moisture and dust resistance
• Measuring range: 0 – 150mm (0 – 6″)
• Compass range: 0 – 200mm radius (0 – 8″)
• Divider range: 0 – 406mm diameter (0 – 16″)
• Accuracy: 0.025mm (0.001″)
• Repeatibility: 0.013mm (0.0005″)
• Reading: 0.0005″/0.01 mm/ 1/128″
• Large LCD display
• Precise marking on steel & wood surfaces
• Battery: 3V CR2032 included
