INCRA MagnaLOCK Router Plate – 690890-AL

INCRA MagnaLOCK™ router plates are made from precision-machined, aircraft-grade aluminium with an anodised coating to achieve the perfect cutting results. High-energy, rare-earth magnets hold the MagnaLOCK rings secure and perfectly flush every time. The 3/8” (10mm) thick router plate is robust enough for most routers and will fit a standard 9-1/4 x 11-3/4” recess in most router table tops including INCRA, JessEm and AUKTools.

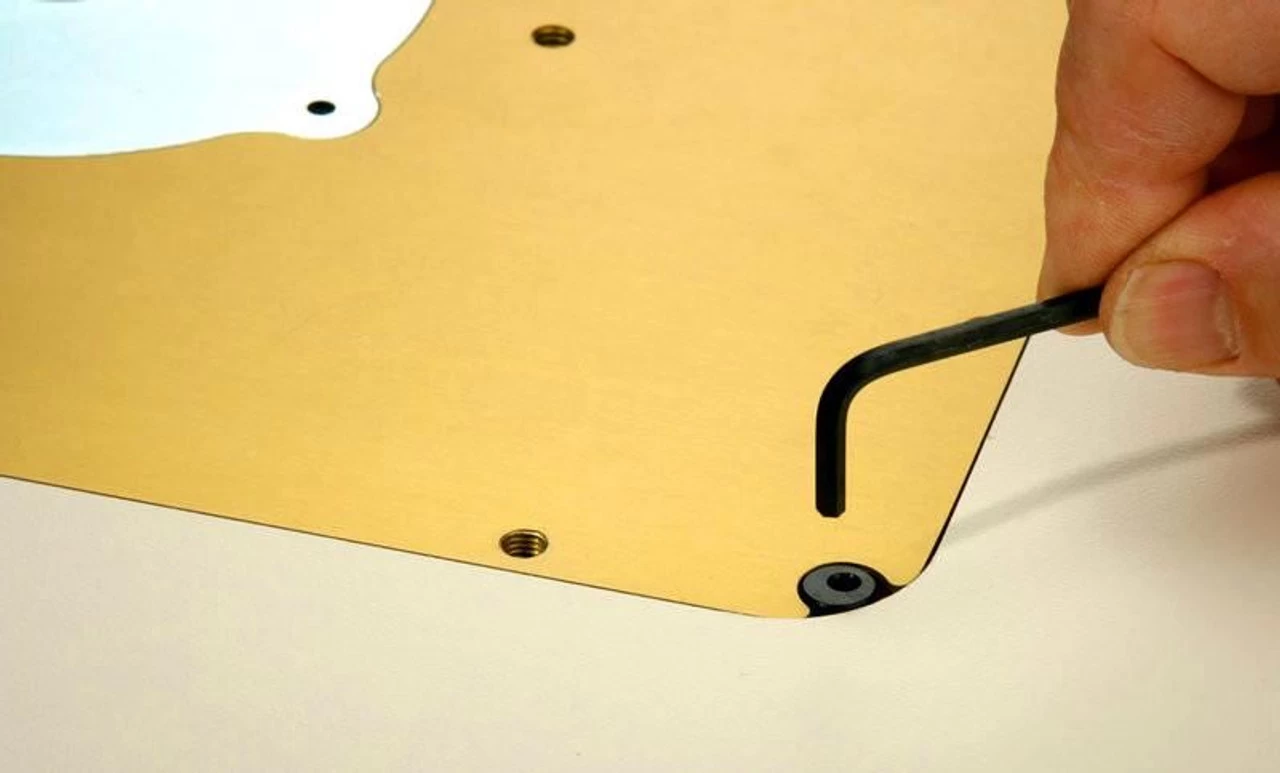

Ten fine thread plate-levelling screws provide extreme control in levelling the plate to your table and rock-solid support at any position around the plate. A simple quarter turn of the corner-mounted Cam-Lock fastener securely locks the plate in the router table’s recess.

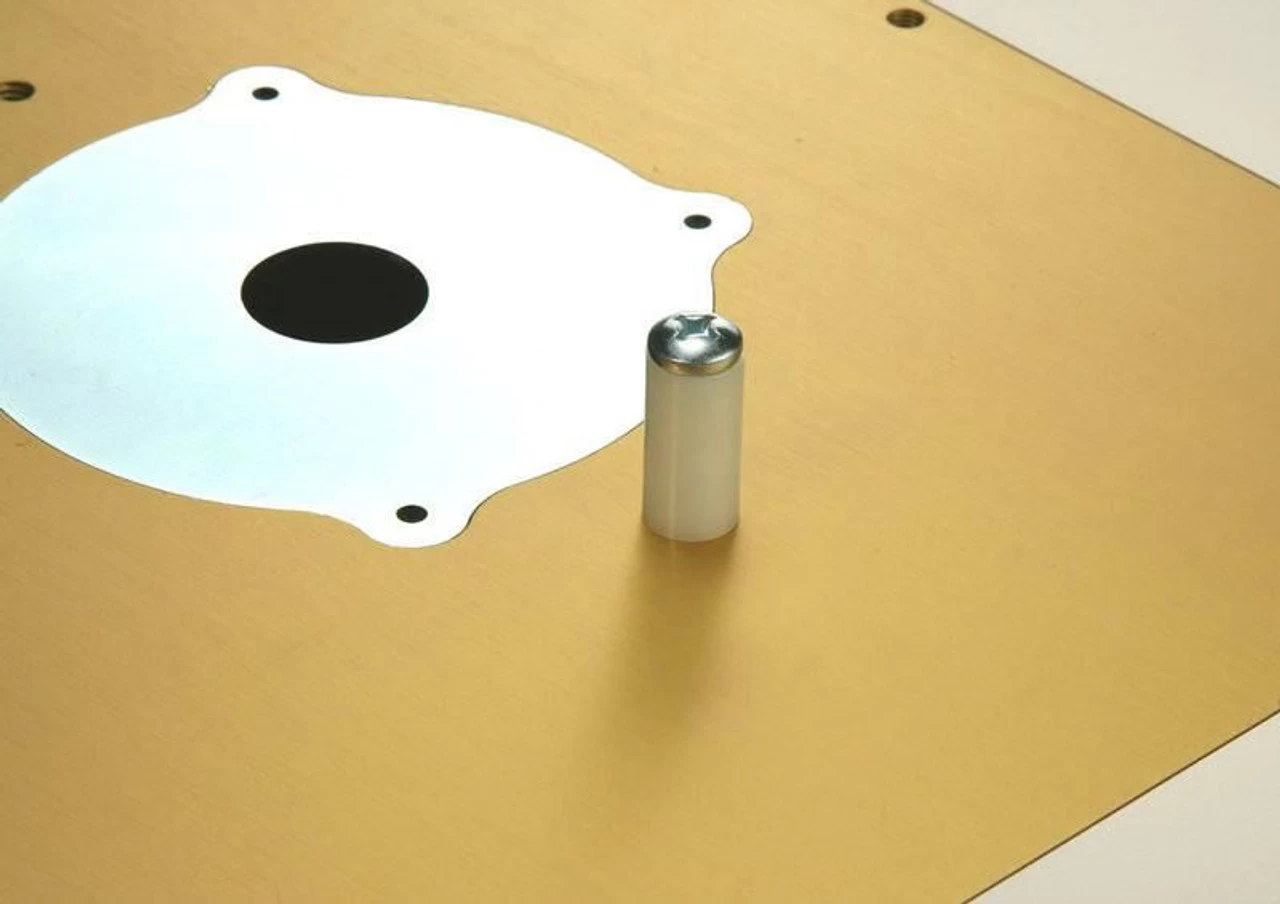

All router plates include three laser-cut steel rings with 1″ (25.4mm), 2-1/8″ (54mm) and 3-5/8″ (92mm) openings. The rings are also available as an 8-piece Solid Ring Set or Clean Sweep Rings for improved dust extraction.

Compatibility

• Bosch 1617, 1618 & MRC23
• DeWalt DW618
• Makita RF-1101 & RF-1100

Click here to view the MagnaLOCK Compatibility Chart
