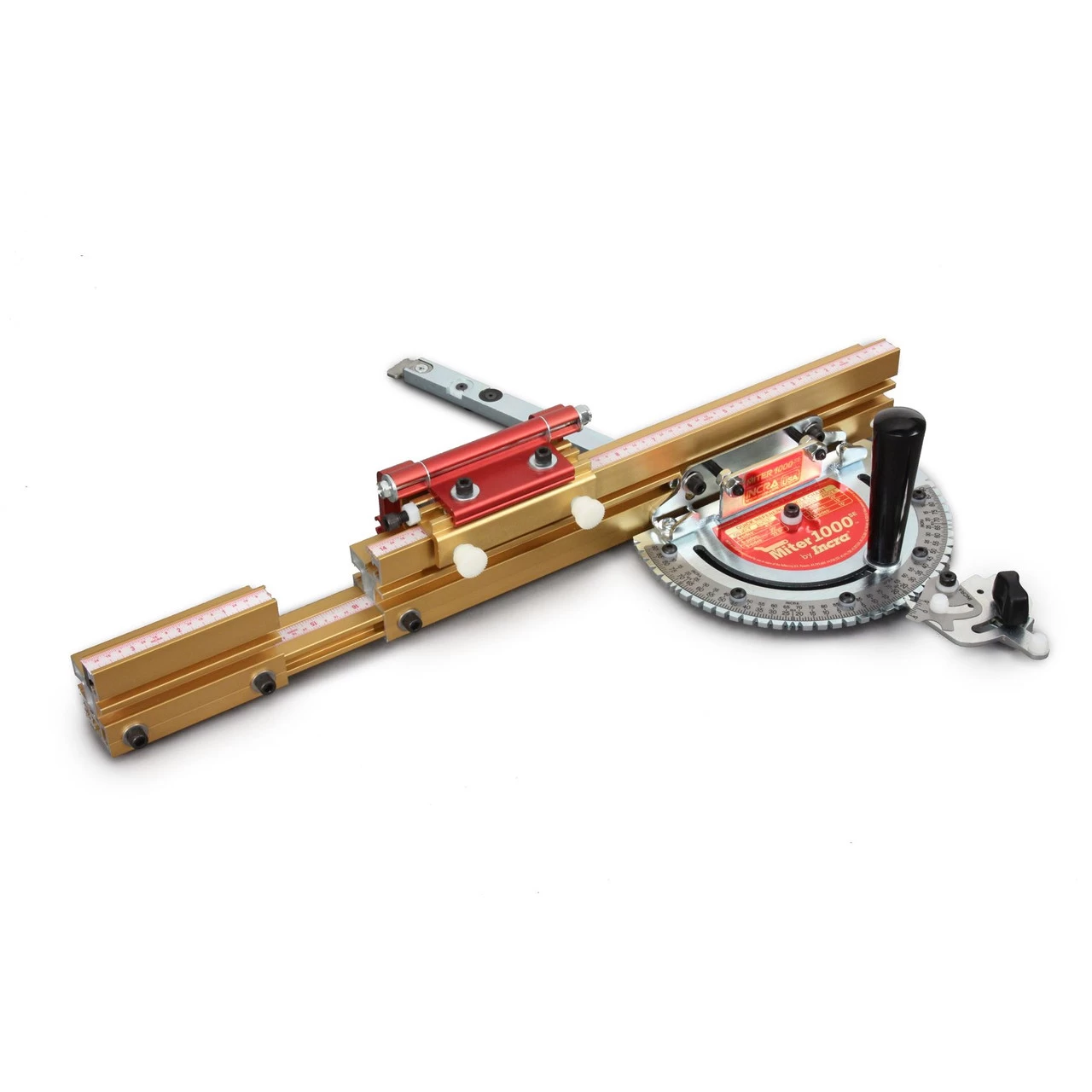

INCRA Miter Gauge 1000SE (Metric)

INCRA’s AngleLOCK Indexing System delivers 41 lock solid angle stops in 5-degree increments over a full 180-degree range. Combine this with the included GlideLOCK Miter Bar, Telescoping IncraLOCK Cut-off Fence and the INCRA Flip Shop Stop, and you’ll easily achieve mitering accuracy that you never thought possible.

Whether it’s your basic 90° cut-off, simple picture frames, or a 20-sided object, the Miter1000SE by INCRA delivers perfect, repeatable accuracy. First time, Every time, Any angle.

The Miter 1000 Special Edition builds on the excellent foundation provided by the Miter 1000.

Features

• 41 Indexed Angle Stops Every 5° Over 180° Range
• GlideLOCK Miter Bar Adjusts to Fit Any Standard Table Saw
• 1/10° Vernier Cursor
• New Extender Fence Telescopes From 18″ to 31″
• INCRA Flip Shop Stop Positioner
• Heavy Duty Steel Protractor

GlideLOCK Miter Bar

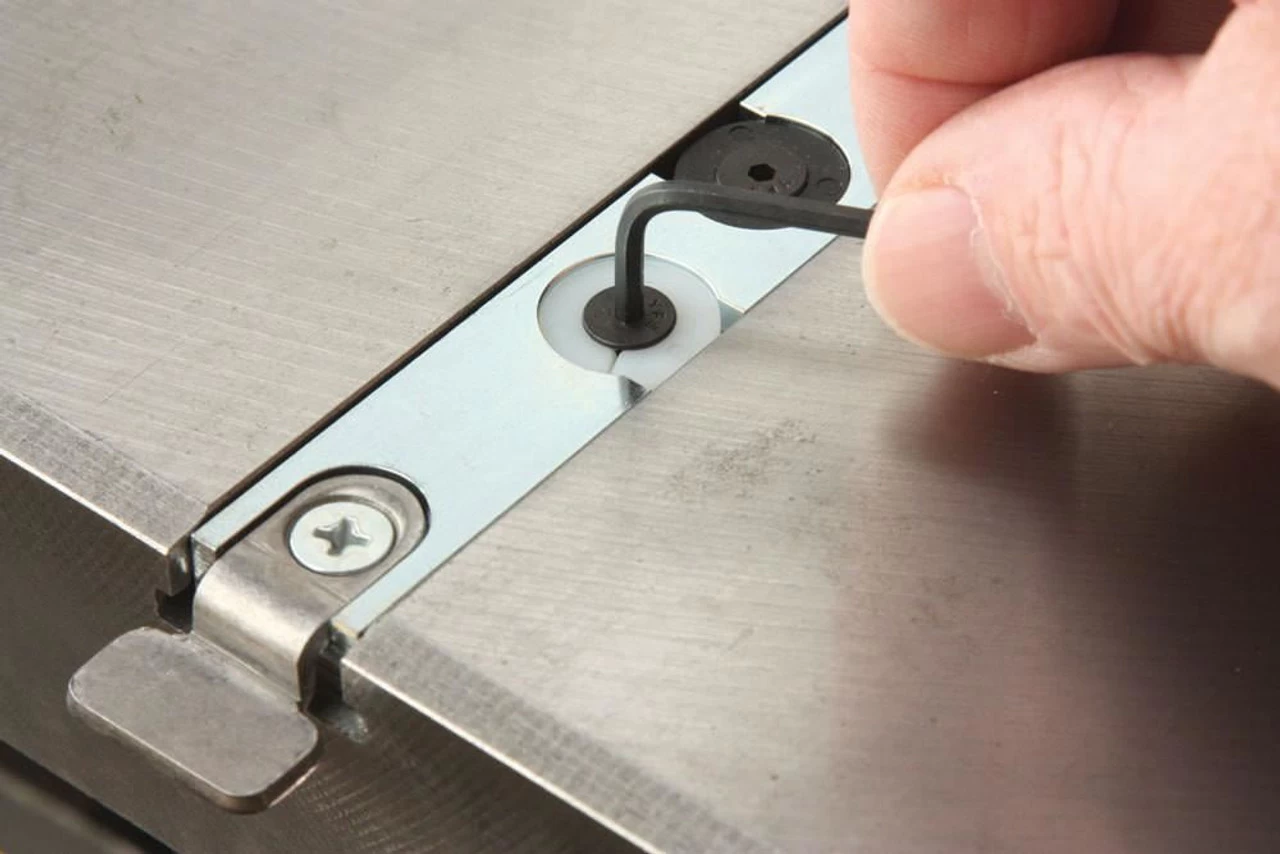

Six expansion disks adjust both sides of the bar for ZERO side play, low-friction travel on all table saws with standard miter gauge channels, including Delta, Craftsman, imports, etc. An excellent fit in the channel directly transfers the Miter 1000HD’s incredible accuracy to your project. The Miter 1000’s adjustable miter bar will fit square-sided miter slots measuring 3/4″ wide, 3/8″ deep, and with or without a 15/16″ T-slot at the bottom. The miter bar’s adjustment range accommodates actual slot widths between 0.740″ and 0.765″.

Telescoping IncraLOCK Fence

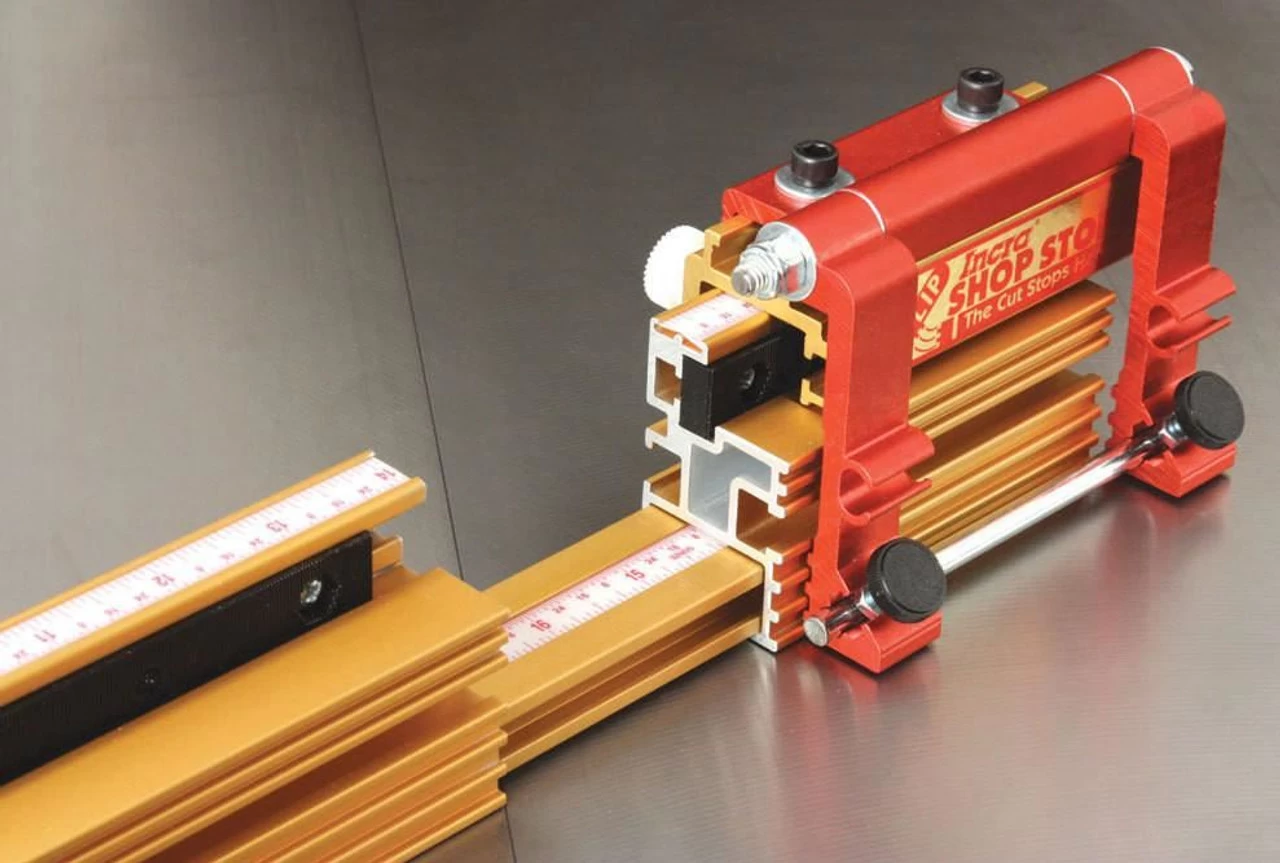

This Miter Fence telescopes from 18″ to a full 31″ length and features a front T-slot for adding a wooden zero-clearance sub fence. The Miter 1000SE’s Flip Shop Stop is equipped with INCRA’s patented incremental positioning racks for incredible cut-length accuracy and 100% day-to-day
repeatability.

Special Edition 1/10th° Vernier Cursor
Precision angle indexing teeth are laser cut in solid steel to lock in positive angle stops every 5° over a 180° range, with special stops at 22-1/2° and 67-1/2°. A stainless steel vernier cursor delivers an incredible 1/10th° resolution between fixed steps.

Includes

• 1 x Mitre Bar
• 1 x Protractor and SquarePERFECT bracket assembly
• 1 x Flip Fence with extension
• 1 x Flip Shop Stop
• 1 x Handle, Hex Key and Hardware
• 1 x Manual

 Product Manual

INCRA Miter Gauge 1000SE Product Manual
