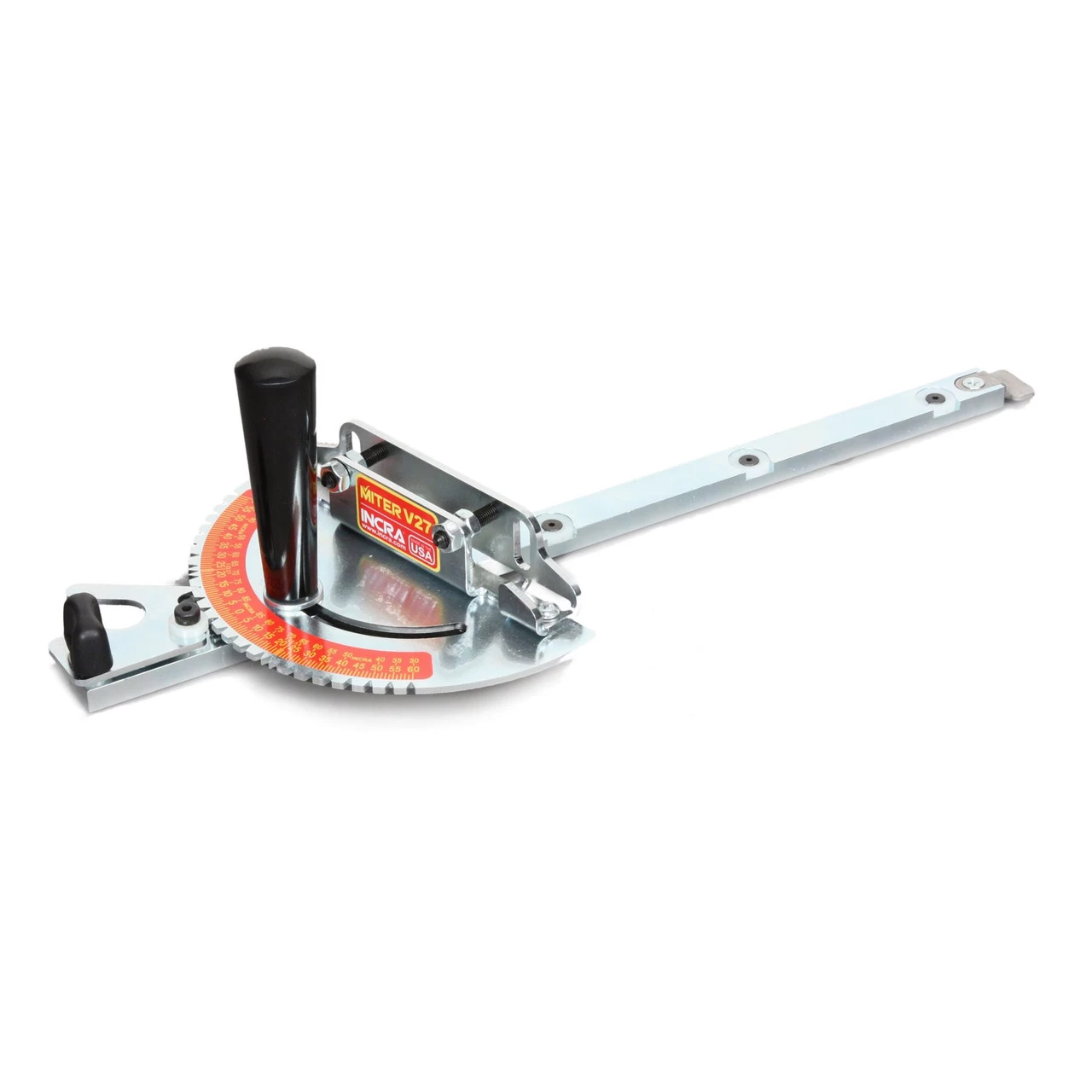

INCRA Miter Gauge V27

INCRA Miter Gauge V27 is engineered to provide a high performance, yet low cost upgrade for any tool in need of a better miter gauge such as a Table Saw, Band Saw, Router Table, Disk Sander or Belt Sander.

Like all INCRA Miter Gauges, the V27 delivers extreme miter cutting accuracy through the advanced combination of INCRA’s exclusive AngleLOCK Indexing System and its patented Adjustable GlideLOCK Miter Bar.

While the V27 delivers ALL the accuracy of its bigger INCRA Miter Gauge brothers, its no-nonsense design and compact size make it the most affordable INCRA Miter Gauge EVER! Now, the INCRA Miter V27 makes it possible to put an INCRA Miter Gauge in EVERY standard miter channel in your shop.

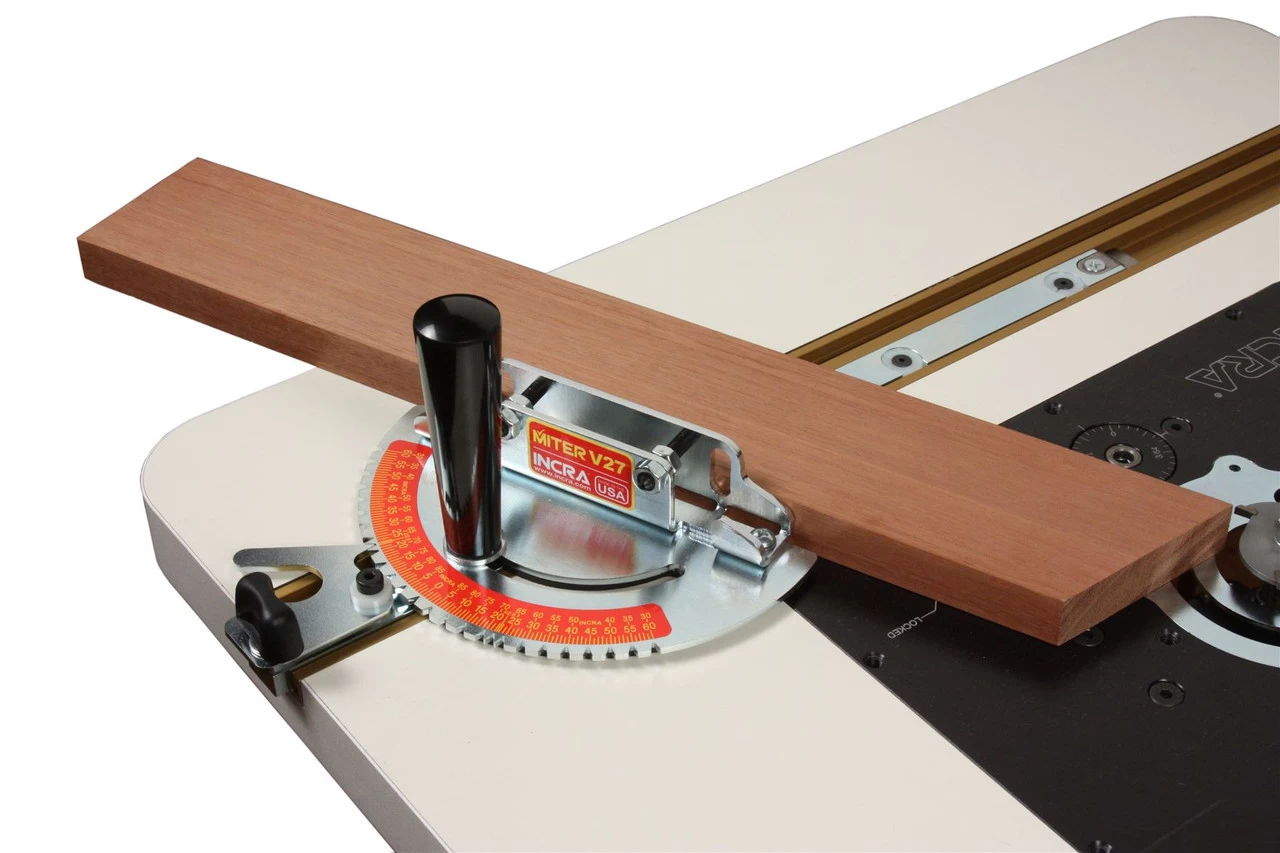

Great for use on your Bandsaw, Disc Sander or Router Table

The Miter V27’s compact protractor design works on applications typically not candidates for aftermarket gauges because of the narrow distance between the cutter and miter slot.

The Miter V27’s adjustable miter bar will fit standard square-sided miter slots measuring 3/4″ wide, 3/8″ deep, and with or without a 15/16″ T-slot at the bottom. The miter bar’s adjustment range accommodates actual slot widths between 0.740″ and 0.760″.

Universal Mounting Bracket

The Miter V27 Universal Mounting Bracket will support any user-made fence as well as any INCRA fence.

Features

• 27 Positive Angle Stops

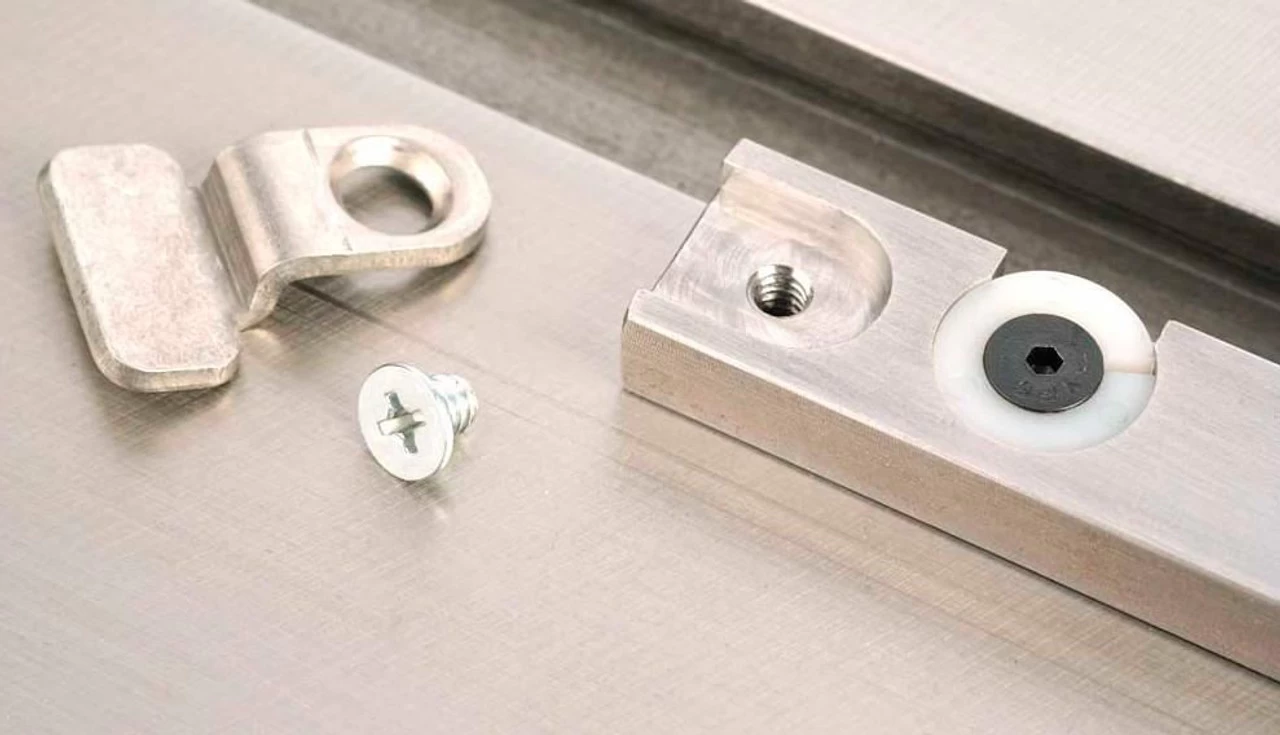

• GlideLOCK Miter Bar with 4 Expansion Points
• 5° Increments
• Special Stops at Plus or Minus 22.5°
• Plus or Minus 60° Range
