JessEm Mast-R-Lift II (Metric) With AUKTools 2400W Fixed Base Router

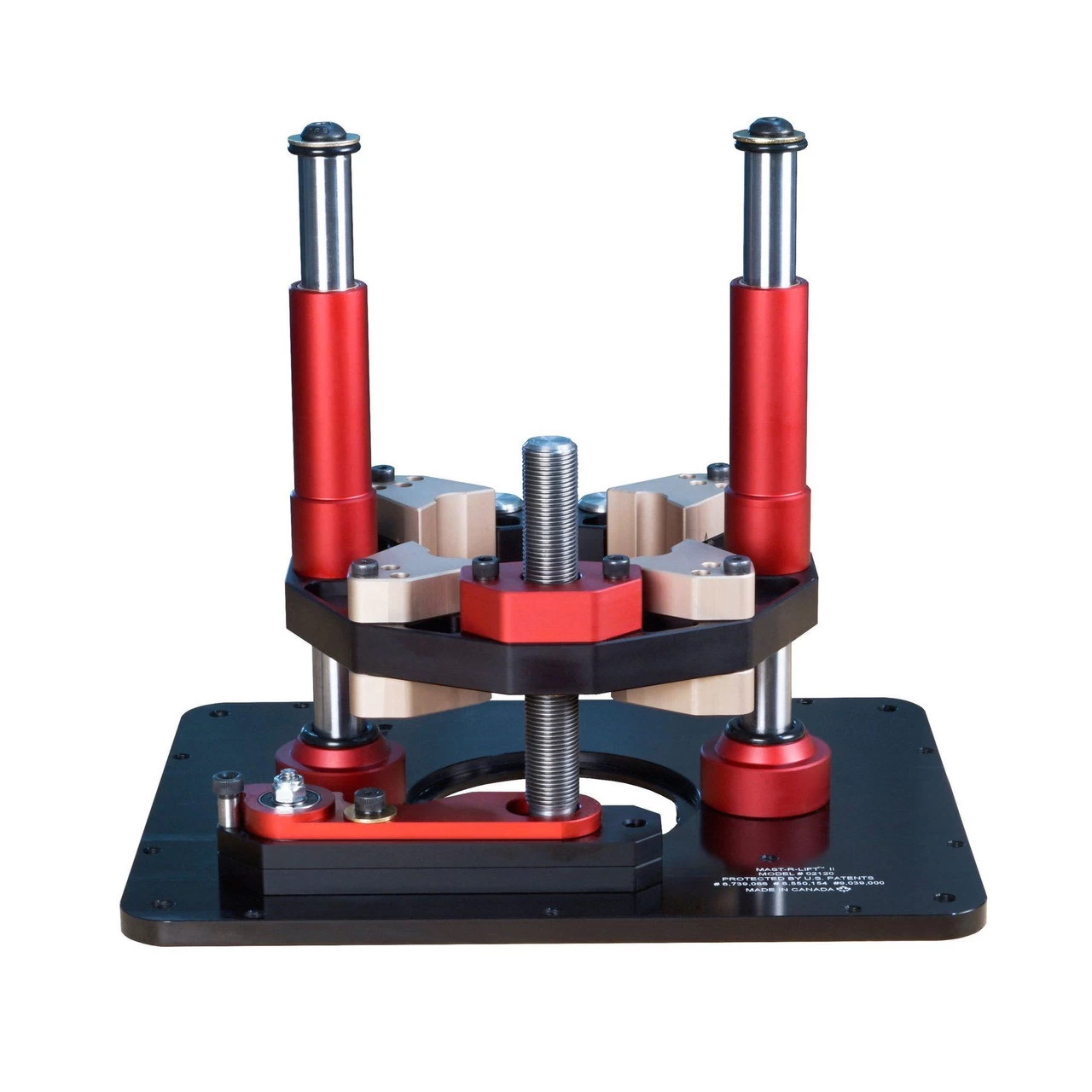

JessEm Mast-R-Lift II with our with AUKTools 2400W Fixed Base Router. The direct-drive rise and fall mechanism works via a metric screw and gives endless years of accurate and reliable service, without the issues associated with a poorer quality belt or chain-driven drives that tend to clog, work loose and snap over time.

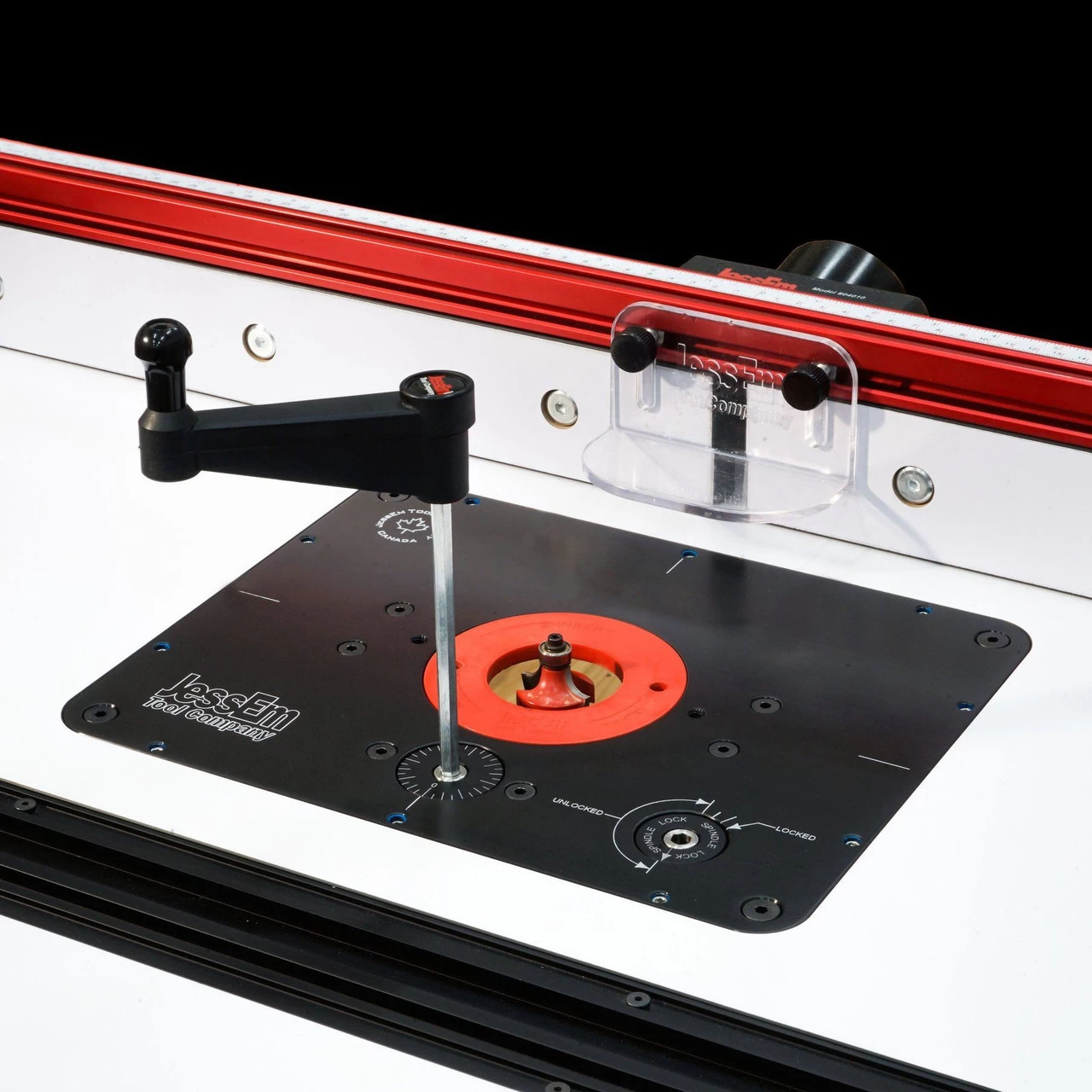

Make life easier! No more scrambling under the table trying to push your router up – all our American-style router lifts allow for height adjustment of the router and cutter changing from above the table.

A robust cranked handle operates the 2 bearing spindle from above the table with great precision and ease. The effortless and positive winding action is measured by the metric scale built into the router plate’s surface giving very accurate incremental calibration of the rise before ultimately using the same cranked handle to lock off the mechanism. Both the height adjustment and locking mechanism are located on the front edge of the router lift plate, meaning you won’t have the hassle of having to move your router fence to make adjustments when in use. The built-in spindle height lock ensures no height loss or movement whilst the router is in use.

The 9.5mm thick cast, precision ground and anodised black solid aluminium top plate is very strong and flat and will not flex or bend in use. The plate measures 235mm x 298mm and will accommodate large diameter cutters up to 92mm and can be reduced down to 51mm using the glass filled poly-carbonate insert ring (ring included – other ring sets are available). All Jessem plates come with their own levelling system allowing for perfect alignment and levelling and fit our own JessEm and INCRA table tops or use our router insert plate template for home-made tables, for a perfect fit.

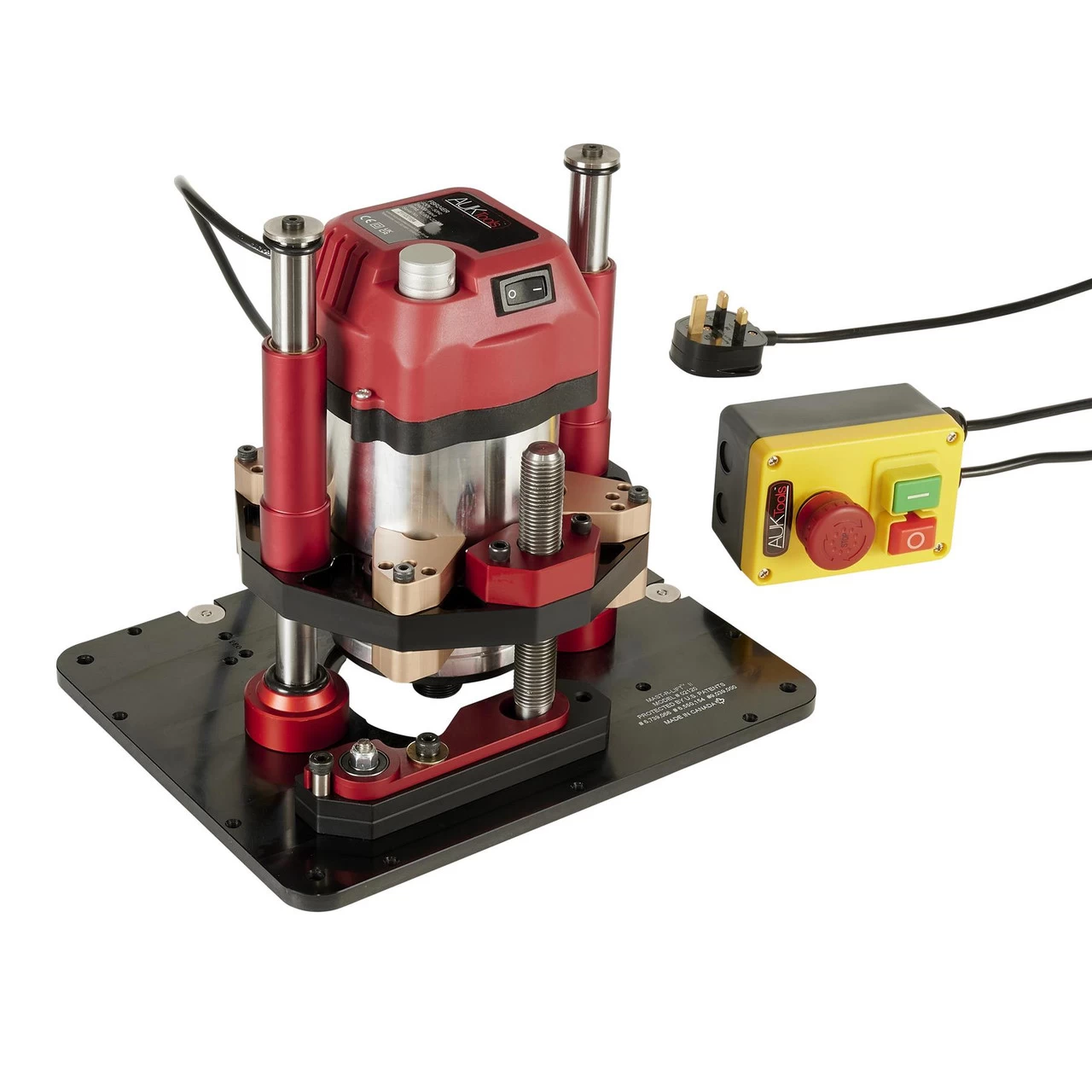

Fitting your fixed base router into the lift is very quick and simple; place your router within the four aluminium fixing blocks and clamp it in place – the Mast-R-Lift II will now do all the height movement for you in one easy and accurate movement.

The router collet will now raise above the router table top for easy cutter changing but to make your router cutter changing even easier, you can use it with our Whiteside 9700 Eliminator Quick Change chuck, for above the table cutter changes.

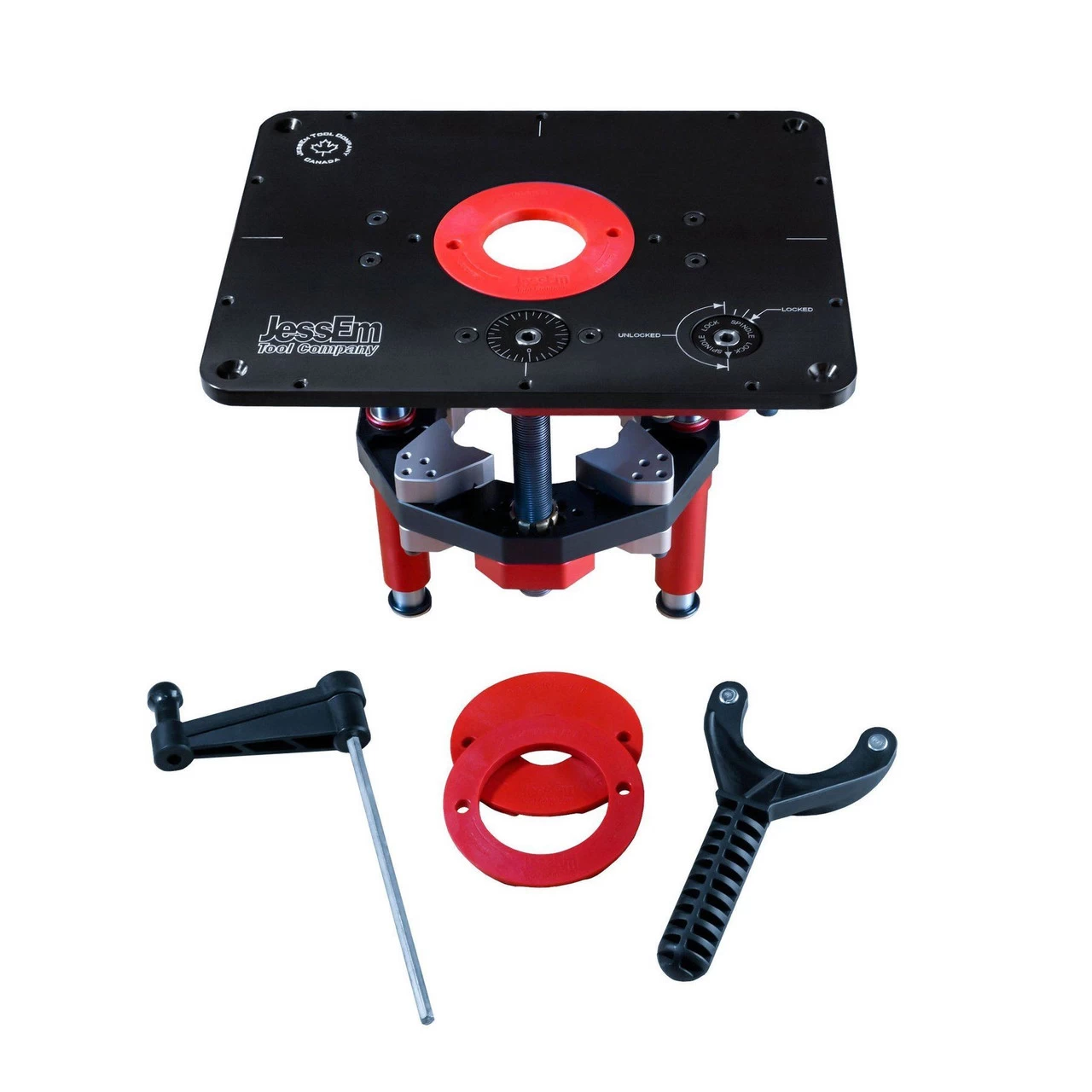

Includes

• Mast-R-Lift II Plate and Lift (combined)
• Winding Handle
• Tab-loc Insert ring Tool
• Levelling grub screws
• Start Pin

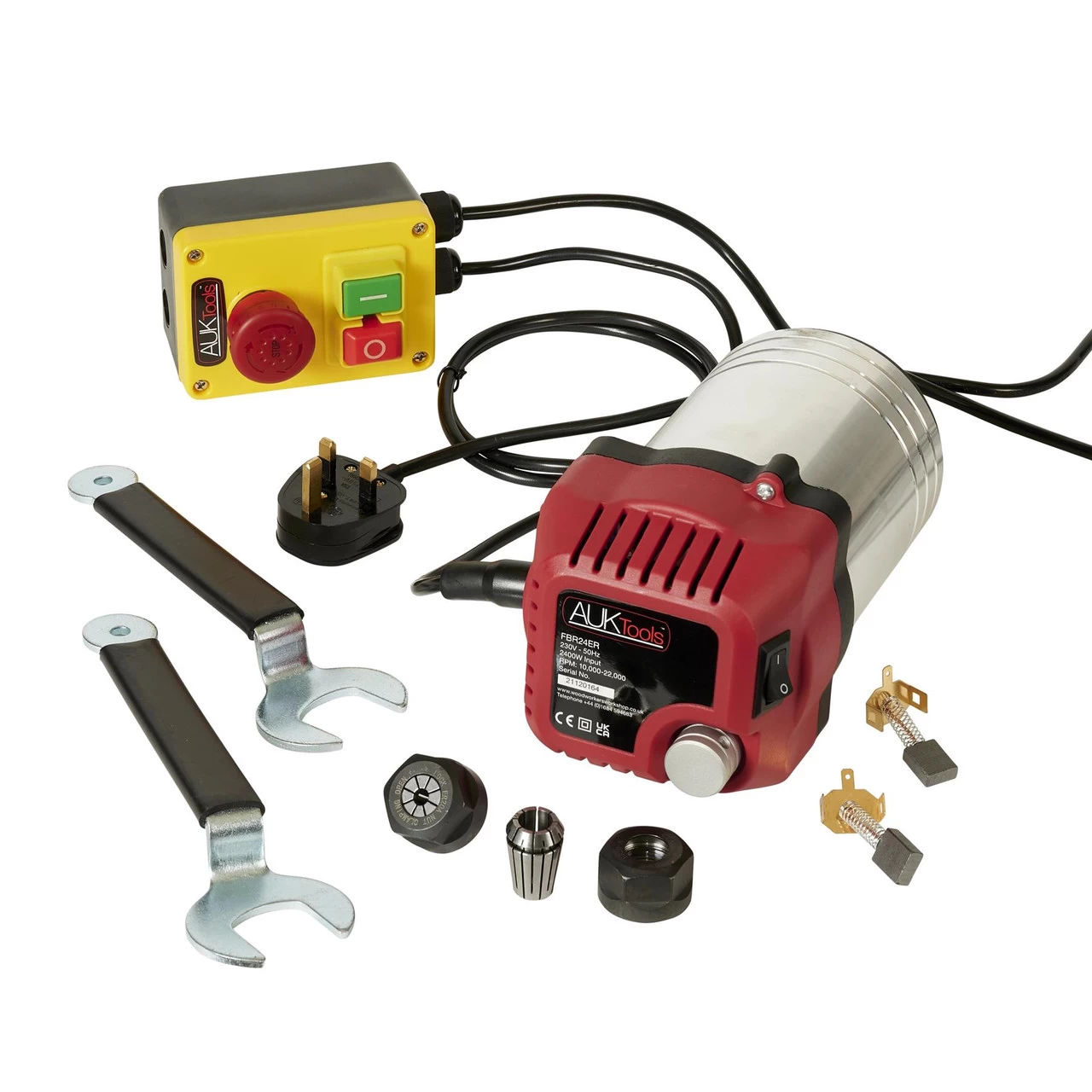

• AUKTools 2400W Fixed Base Router
