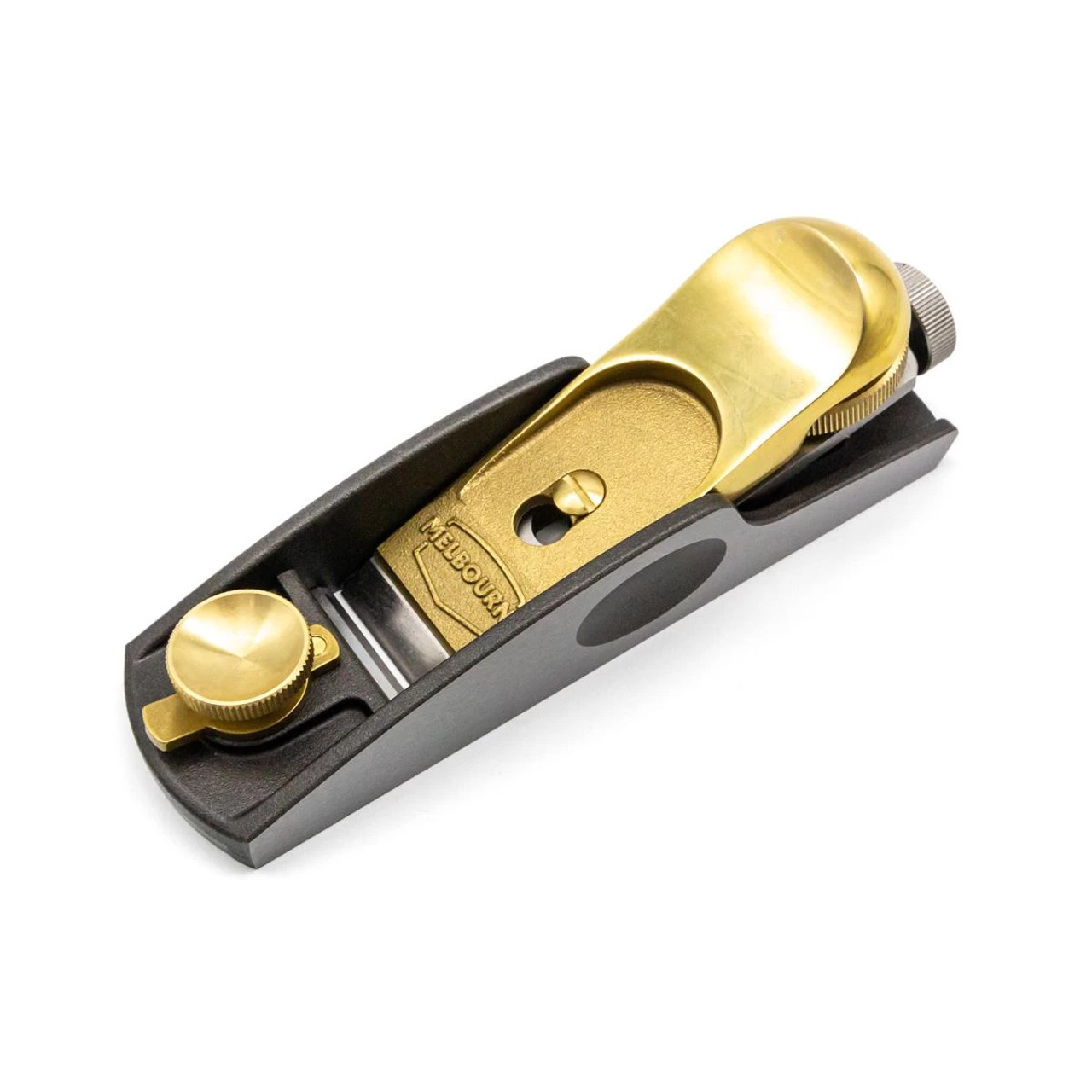

Melbourne Tool Company Low Angle Block Plane

Block planes are every woodworker’s best friend. Primarily designed for shaving end grain, completing touch-ups and finish work, a block plane is the must have plane in your toolbox.

An uncomplicated plane

The Melbourne Tool Company Low Angle Block plane can plane any kind of wood yet remains an uncomplicated tool. The minimalistic design makes it easy to disassemble for maintenance and reassemble for work. The adjustment knobs and wheels are accessible and feature a very smooth action. The blades depth of cut is adjusted by simply turning the depth and lateral adjustment wheel. Slide the adjustment wheel side to side to skew the blade left and right.

12 degree bed

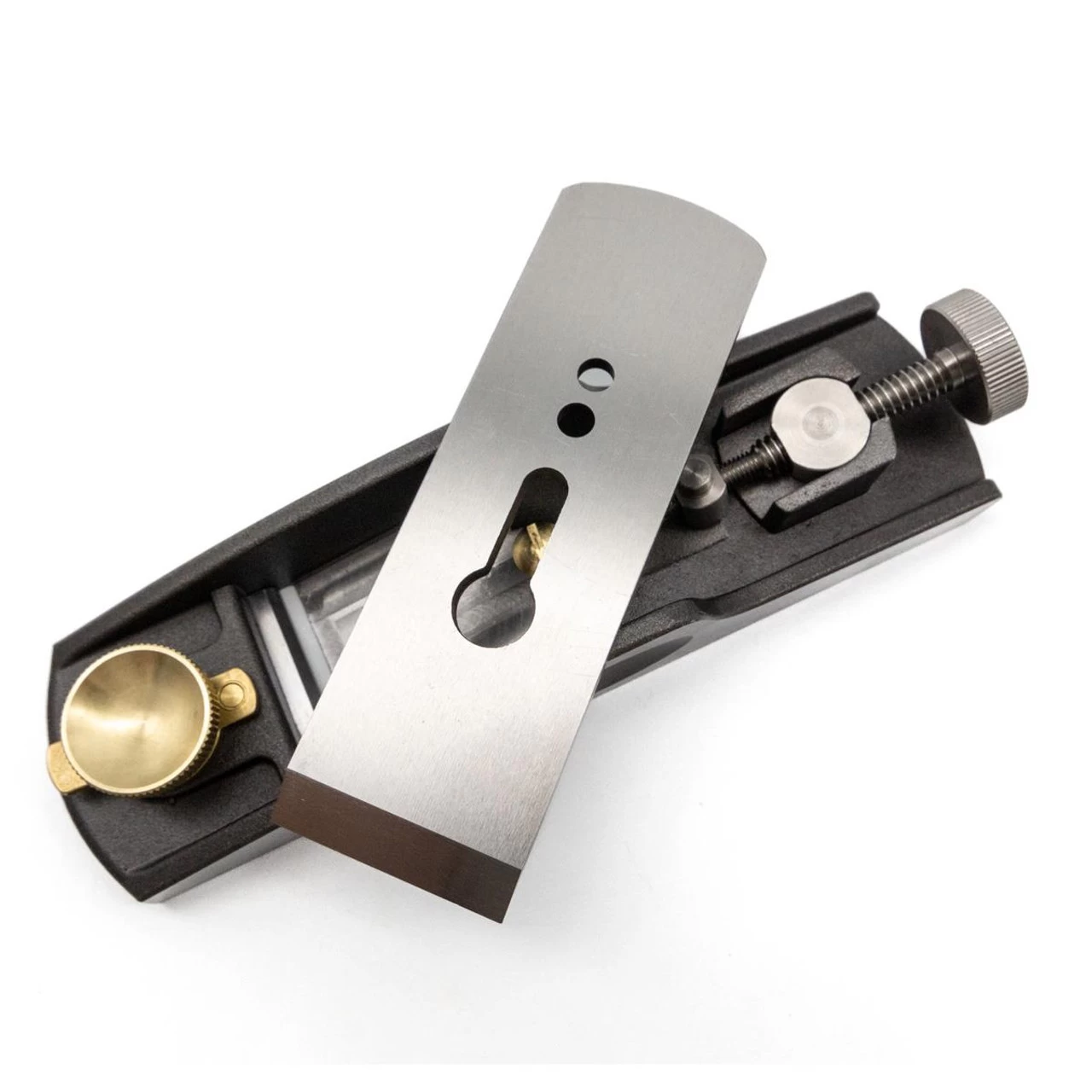

The blade is set bevel-up in the milled plane bed at 12 degrees providing you with a very low angle of attack. The blades fix down hard on the plane casting, so blade’s cutting edge is provided with maximum support no matter the workpiece.

3 angled blades available

The Low Angle Block is supplied with a blade sharpened to 25 degrees. Along with the 12 degree bed, you now have an effective cutting angle of 37 degrees, perfect for jobs like end grain. Also available are blades ground to 38 degrees suitable for smoothing, and 50 degrees for smoothing figured material.

M2 High Speed Steel blades

The M2 HSS (High Speed Steel) blade has high abrasion resistance which means it will hold a sharp edge much longer than many other steels. This also means that it may take a little longer to bring up an edge, very similar to A2 steel, but holds the edge longer than O1 steel.

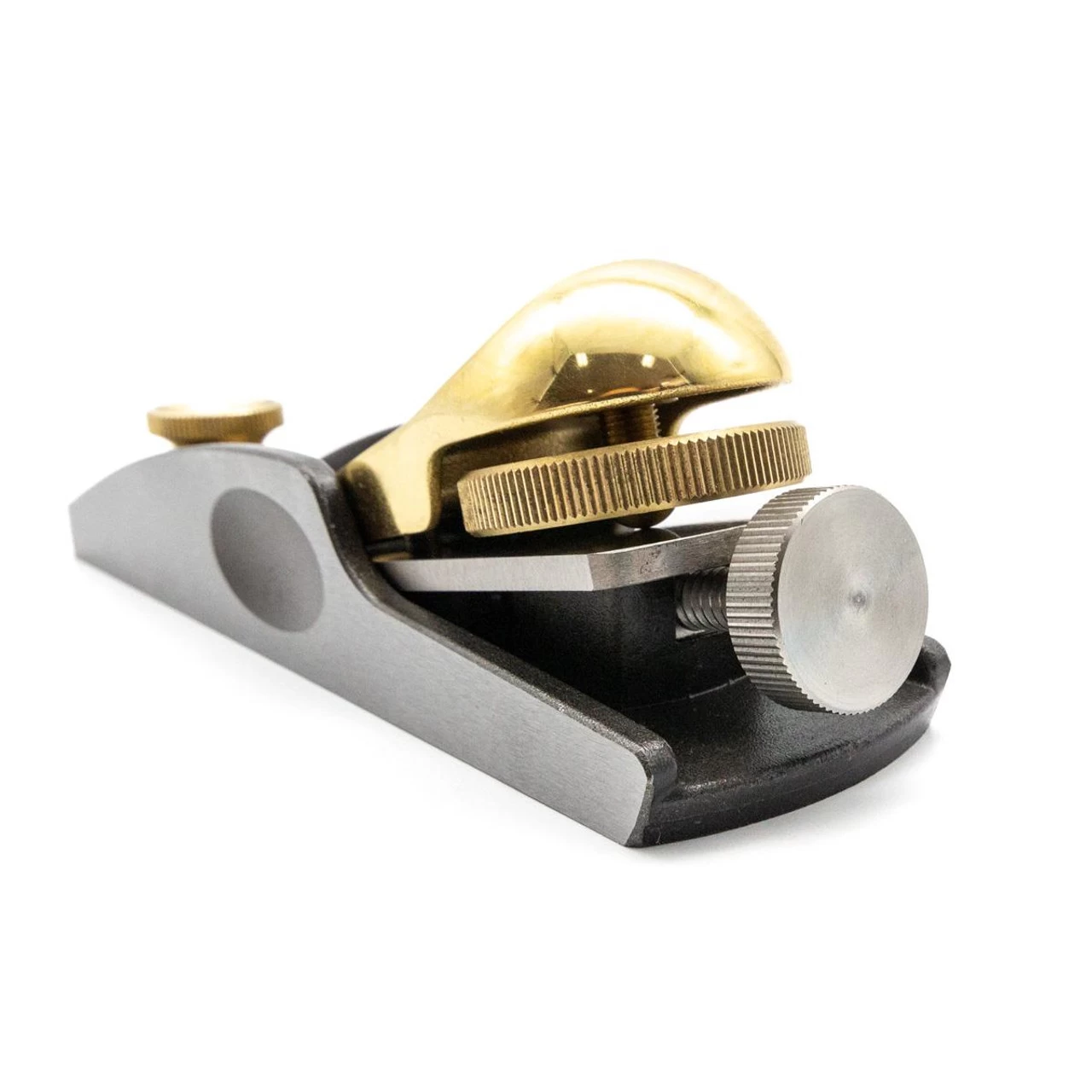

Easy and precise depth and lateral blade adjustment

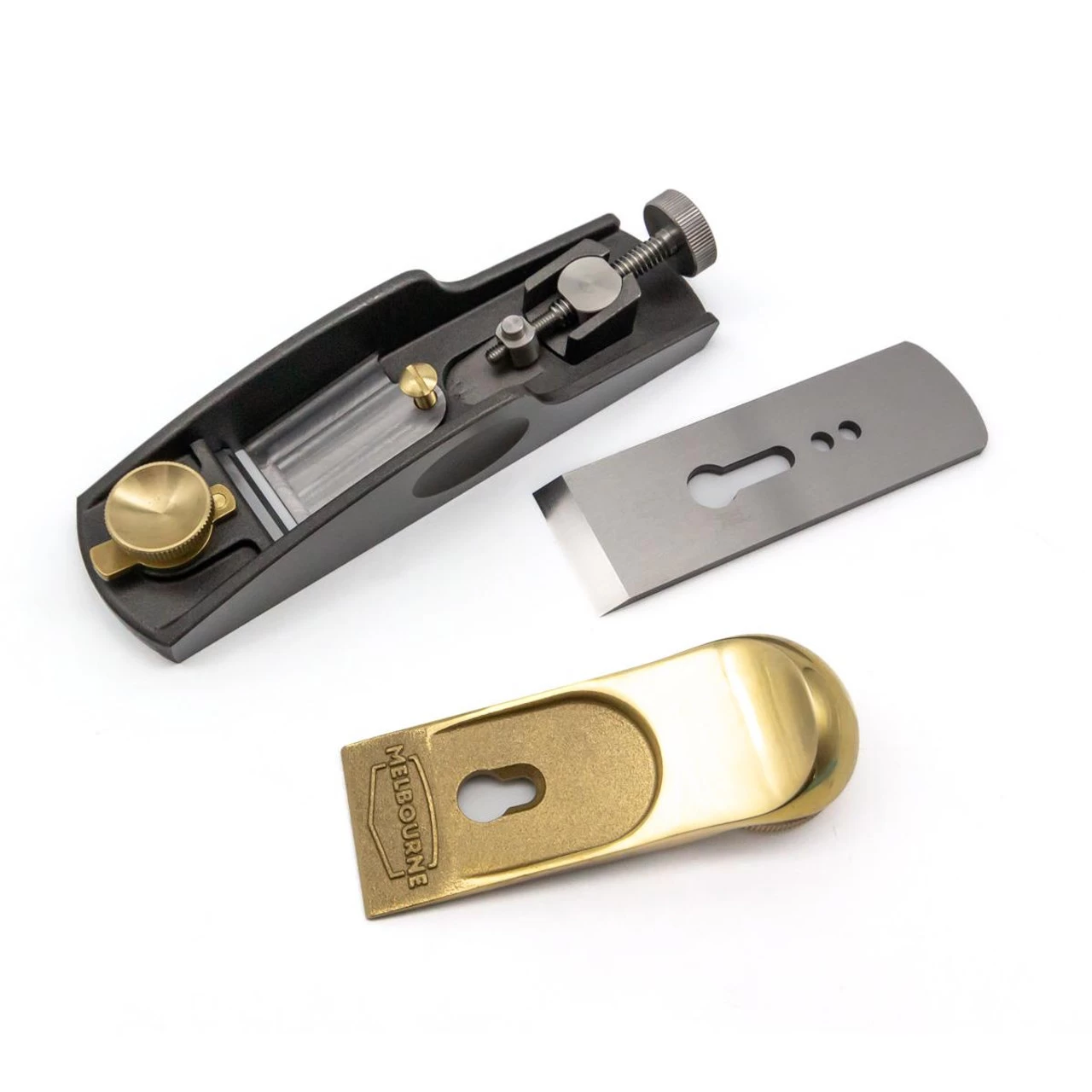

The Low Angle Block Plane features an easy to adjust, precise depth and lateral blade adjuster. Twist the knurled knob to set the depth of cut. Slide side to side to skew the blade within the plane mouth. The whole assembly comes apart easily for regular maintenance.

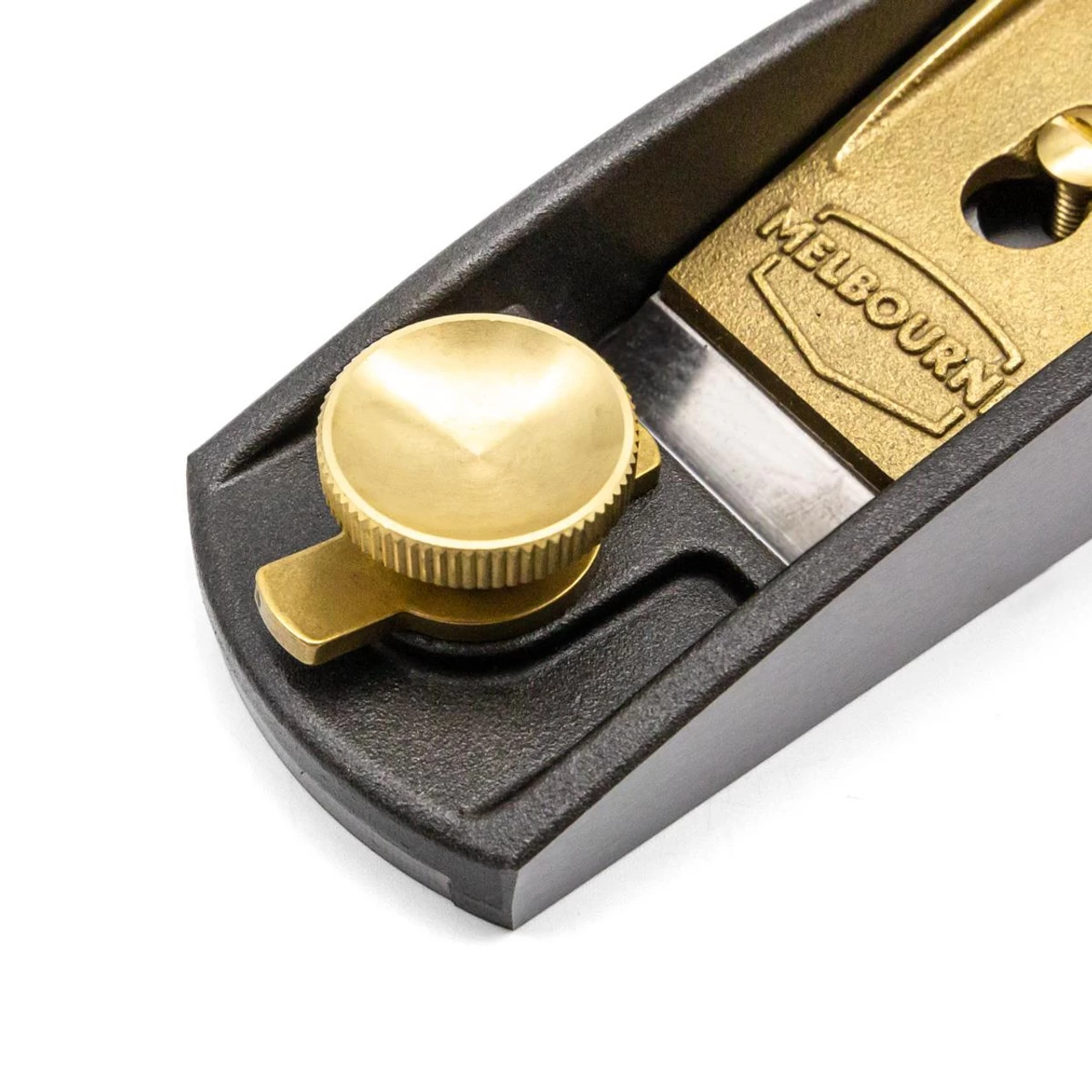

Adjustable mouth

The plane mouth is fully adjustable. Twist the front handle knob to release the toe. Use the mouth adjustment lever to set the mouth width opening to suit the work at hand. Close the mouth up tight to minimise tear out when working difficult figured materials.

Owner’s manual

Your Melbourne Tool Company plane is delivered packaged in a foam lined cardboard box. Inside is a QR code you can scan to download your Owner’s Manual.

Specification

• Sole dimensions: 43 x 165mm
• Weight: 750g
• Cap Iron: Brass
• Plane Steel: M2 HSS
• Plane bed angle: 12 degrees
• Standard blade cutting angle (supplied): 25 degrees
• Plane blade dimensions: 3.4mm x 35mm x 110mm
