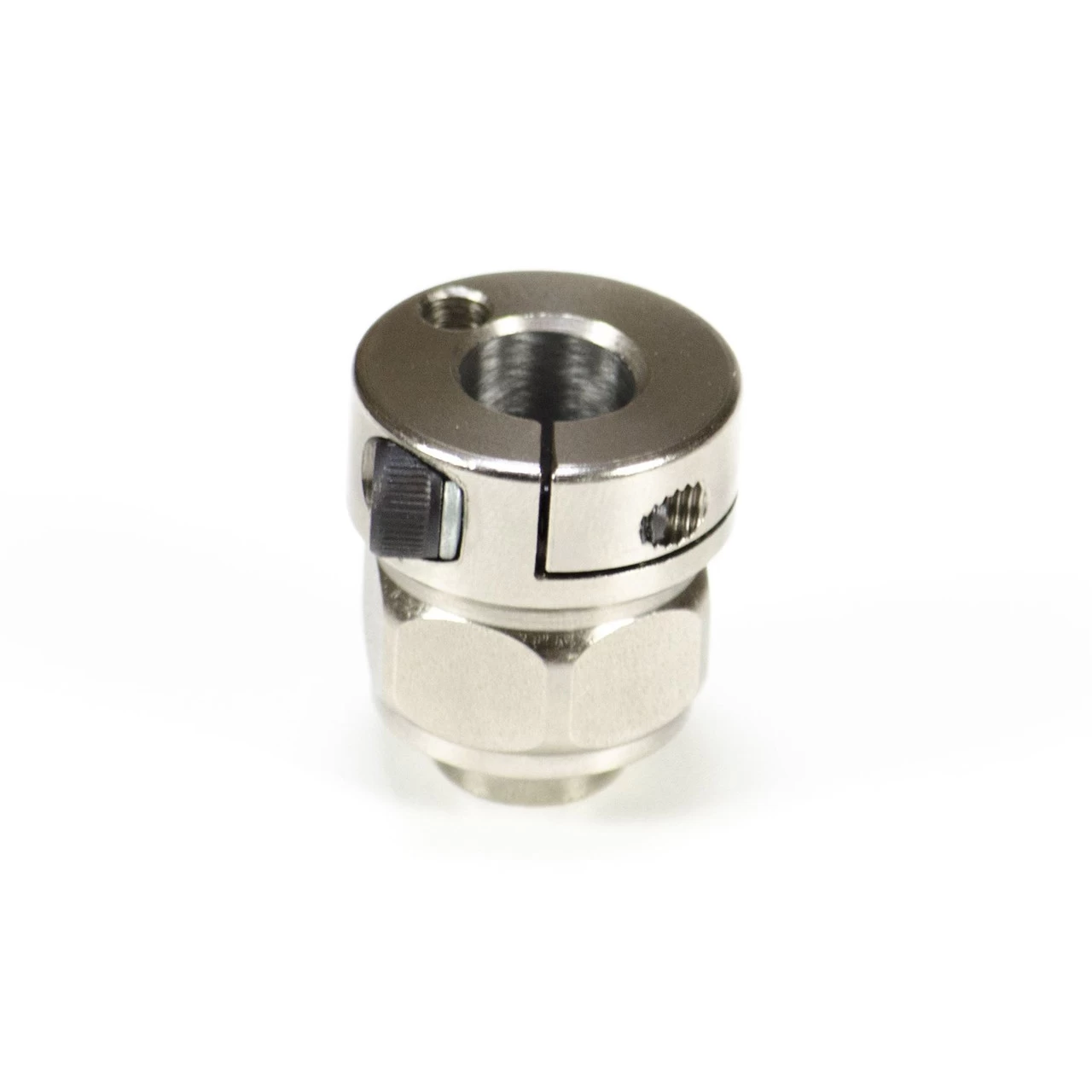

Musclechuck Quick Change Chuck Type 3

Musclechuck’s Quick Change Chuck allows you to change your router cutters one handed, with ease and speed from above the router table or on your CNC machines.

The chucks locking system uses just one hex wrench which leaves the other hand free to hold the cutter. The patented noose grip design gives a full 360 degrees hold on the cutters shaft and loosens with a partial turn using the included 5/32, ball-end, hex key wrench. The design of the chuck means there is no cam to wear out or damage your cutters.

The Musclechuck replaces the original router collet offering improved runout and no more rummaging around for the right wrenches, engaging spindle locks or skinning your knuckles on the router housing.

The Musclechuck opening is for 1/2″ shank cutters as standard but can be used with collet reduction sleeves for a variety of shank sizes.

The Musclechuck range fits a wide variety of plunge and fixed base routers. Click here to view the Musclechuck Compatibility Chart.

Features

• Musclechuck Size: 1/2″ Shank Router Cutters
• Patented noose grip design giving a full 360 degrees purchase
• Chrome-Moly Steel with: Electroless Nickel Corrosion Protection
• Ball end hex key included to tighten up to a 30-degree angle
• Precision CNC engineered in U.S.A.
• Run 1/8″, 1/4″, 6mm, 8mm and 10mm diameter cutters with reductions sleeves.

Supplied with a free T-Handle Ball-Hex Key 5/32” textured handle for extra comfort, slip resistance and safety.

Please Note: Style and make of the Ball End Hex Wrench may vary as stock allows.

Important Notice: Please follow the enclosed instructions for setting up your new Musclechuck. It is important these instructions are followed, failure to follow these instructions is a misuse of the Musclechuck assembly.

Disclaimer: Power tools and their accessories, such as the ‘Musclechuck™’ assembly, should only be used for their intended purpose by users experienced in their operation. Careless handling or misuse may result in serious injury or death. Failure to follow the enclosed directions is a misuse of the ‘Musclechuck™’ assembly. The user must always ensure the cutter is secure in the chuck, especially when a reduction collet is being used BEFORE turning on the router.
